DIY plans to build an outdoor square pub bar table

Delivery
Digital download.     File type: PDF
Your files will be available to download once payment is confirmed.

Description

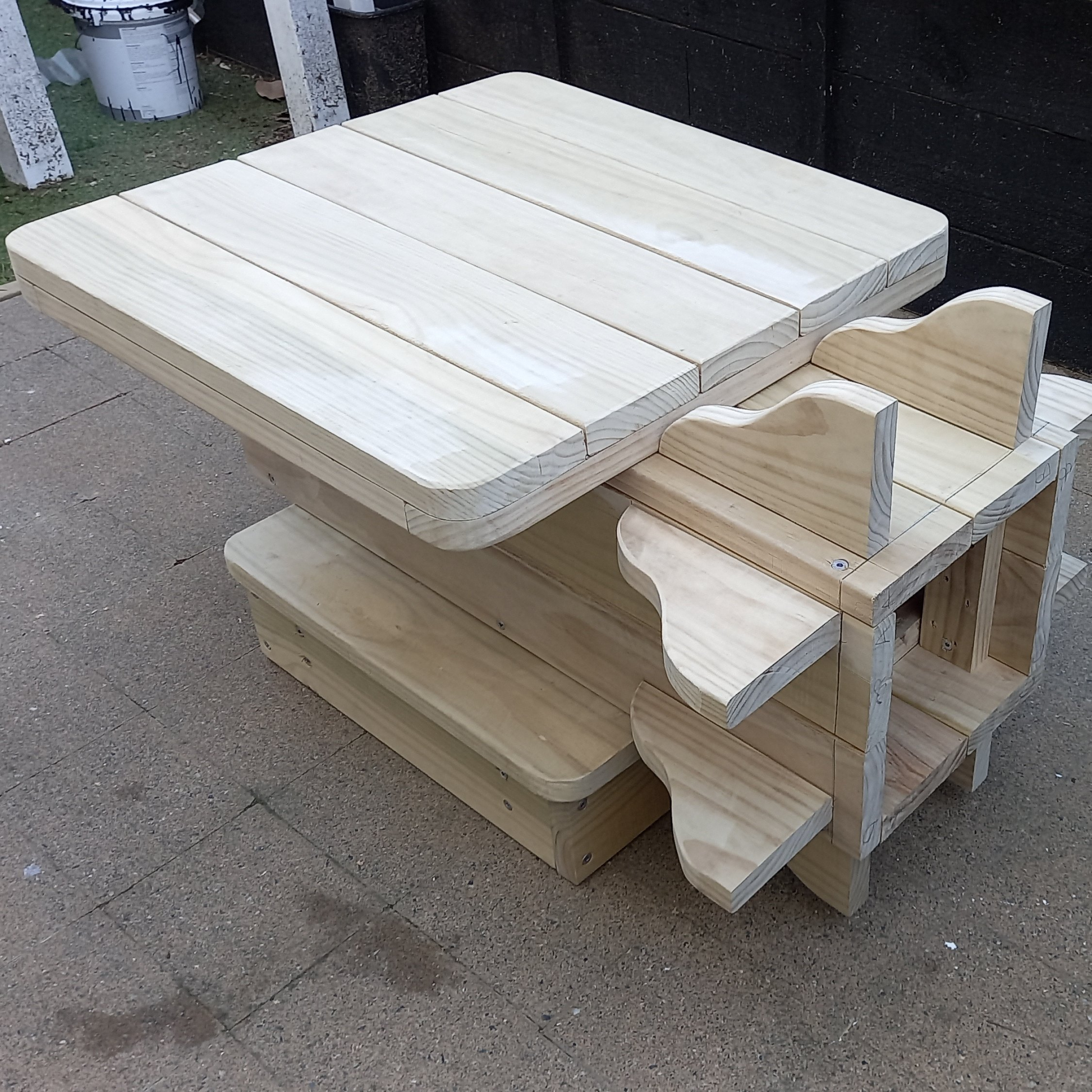

DIY Plans for a sturdy bar leaner pub table made out of 2x6 (50 x150mm) lumber.

The tabletop is 27-1/2" (700mm) square and 40" (1016mm) high. The foot rest is 7" (178mm) high.

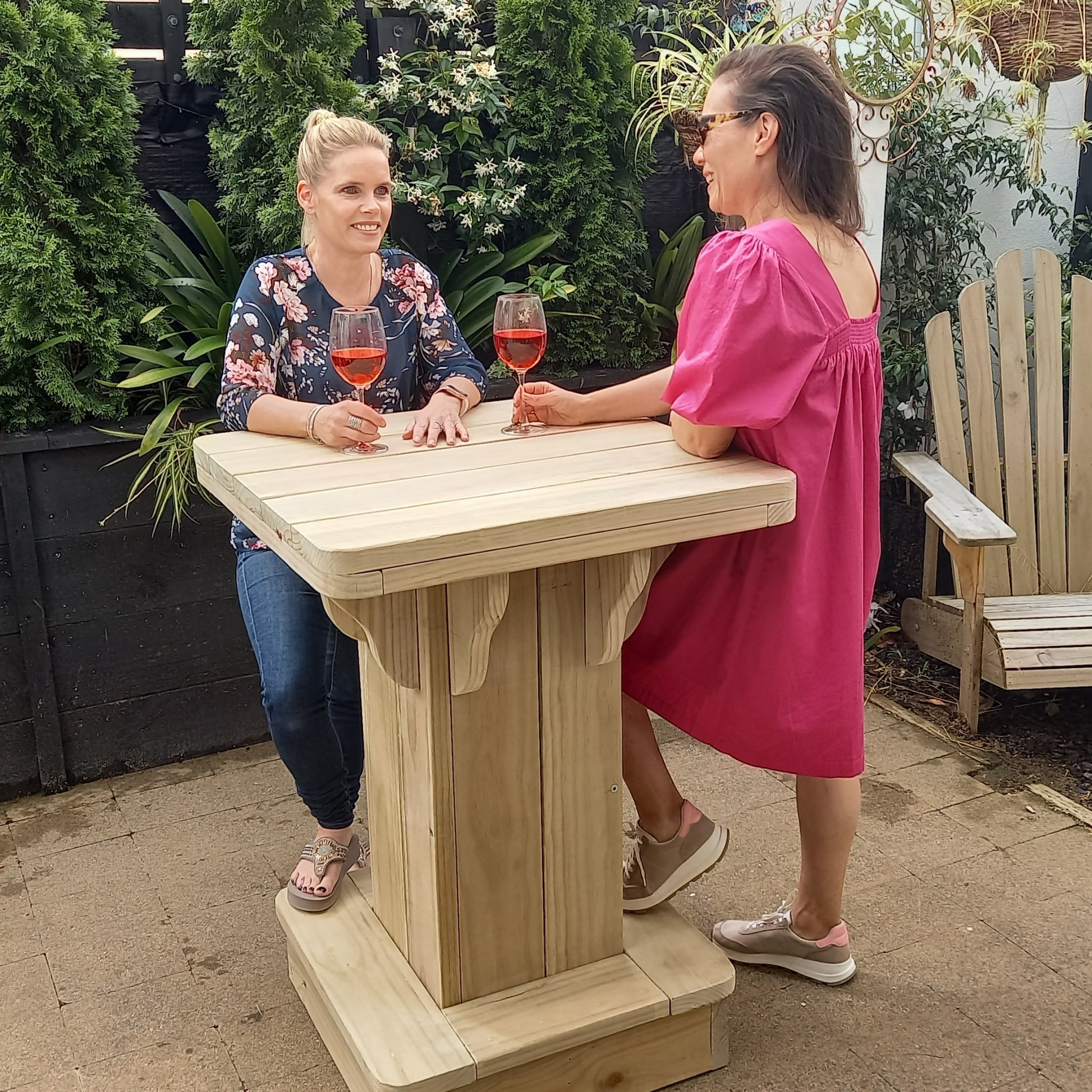

It is a very comfortable table to lean on or against.
It can be easily dismantled and reassembled again.

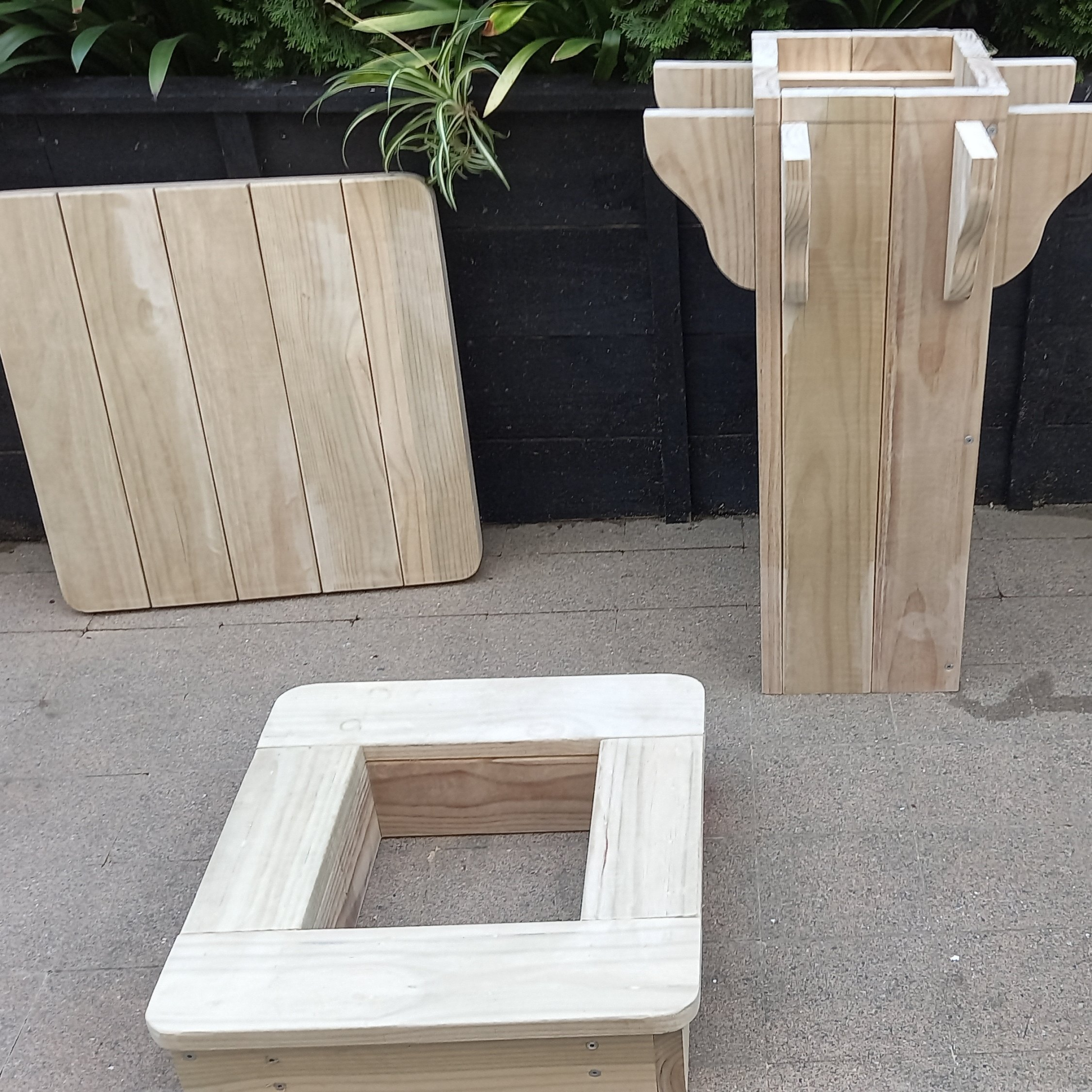

The unit can be easily separated into three parts: the tabletop, the column, and the base. This can be very handy if you want to transport or store it.

The downloadable PDF file contains 22 pages, which include plans, pictures, drawings, a shopping list, a cutting list with cutting detail, easy step-by-step building instructions, and more.

All dimensions throughout this project are given in both standard inches and metric millimetres.

Materials you will need.

LUMBER:
10 treated 1-1/2" x 5-1/2" (38x140mm) lumber pieces, 8ft (2400mm) long.

FIXINGS:
Exterior wood screws:
140 @ 3" (75mm) long,
20 @ 4" (100mm) long,
8 @ 5" (125mm) long.
(I used 14G (#14) galvanized bugle head screws.)

Decking screws:
44 @ 3-1/2" (90mm) long.
