Les Kenny's outdoor woodworking plans

DIY plans to build an 8ft (2400mm) long traditional picnic table

DIY plans to build an 8ft (2400mm) long traditional picnic table

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out

 Delivery
Digital download.     File type: PDF
Your files will be available to download once payment is confirmed.

Description

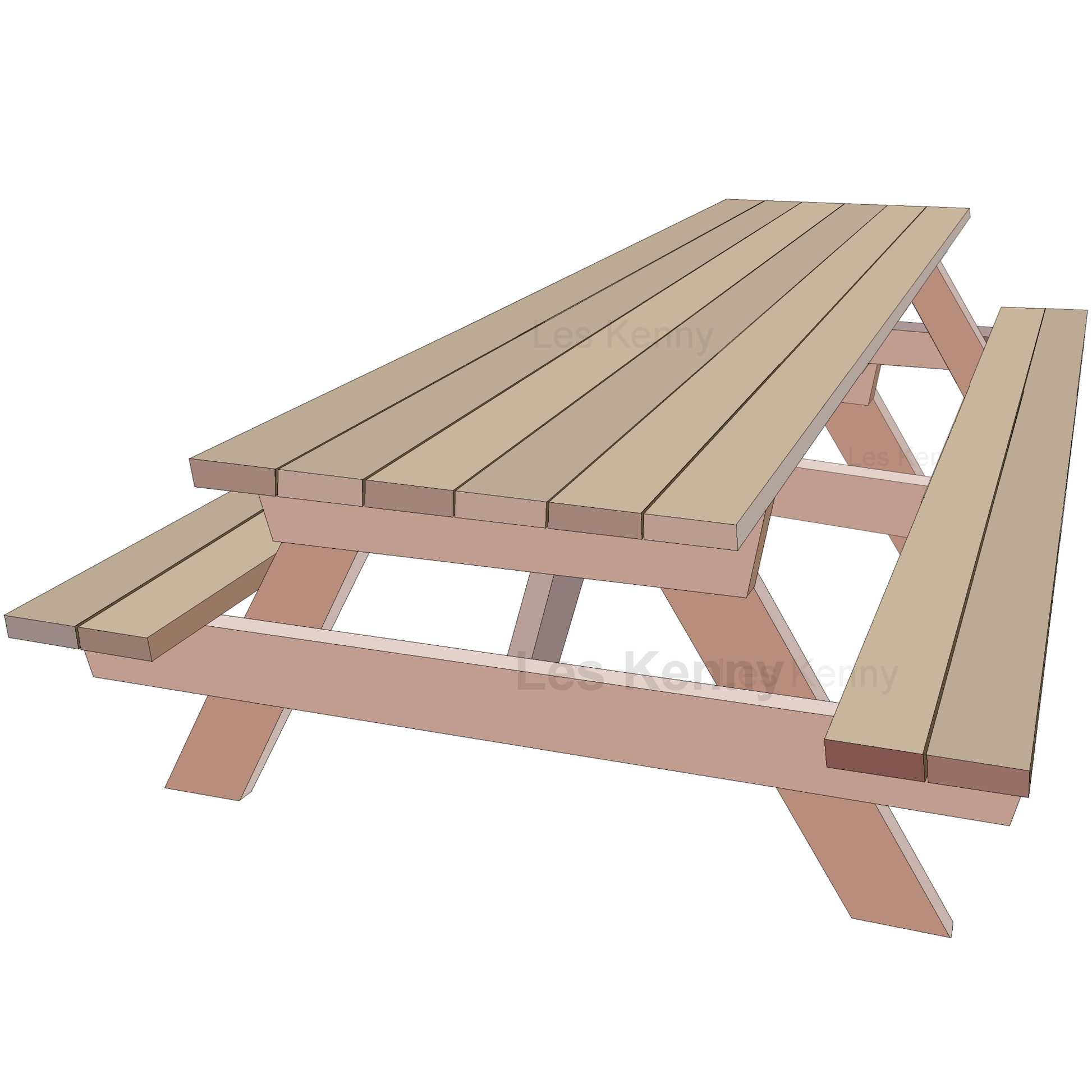

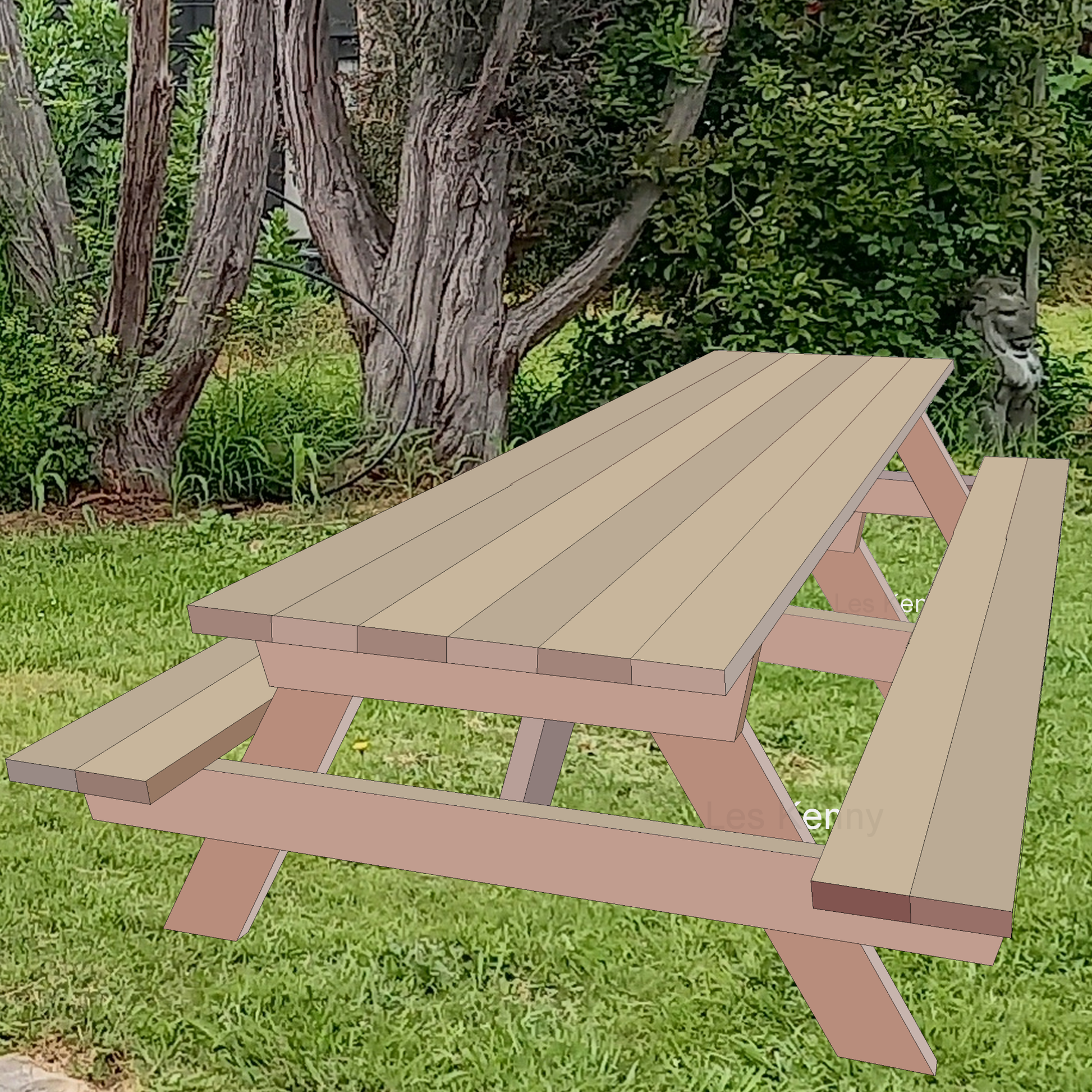

Easy build this 8ft (2400mm) long picnic table made out of 2x6 (50x150mm) lumber. It has attached seats on each side and will comfortably seat 8 people.

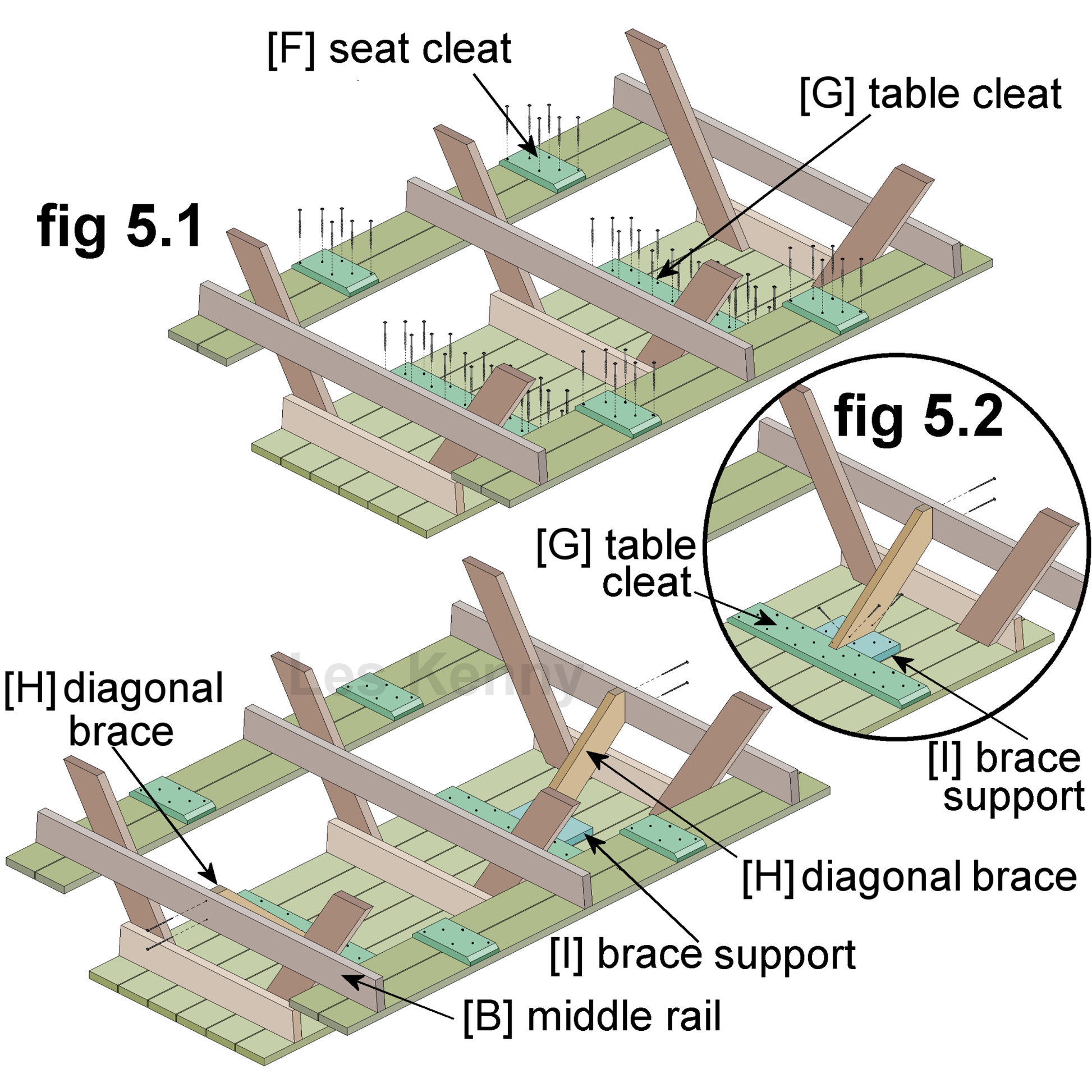

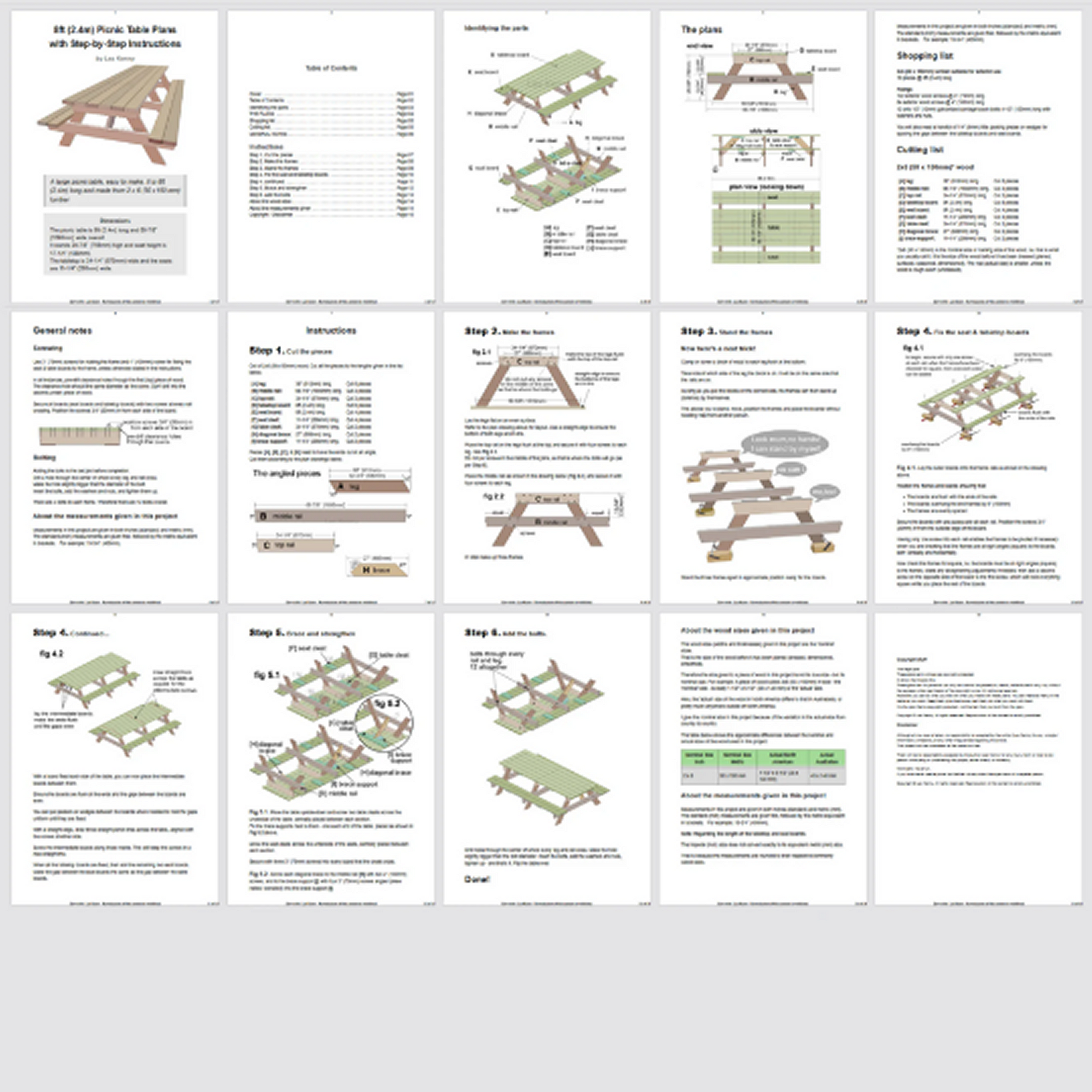

The downloadable PDF file contains 15 pages and includes plans, pictures, drawings, a shopping list, a cutting list, and step-by-step building instructions. There are also drawings showing where all the screws go.

All length measurements in this project are given in both inches (standard) and metric (mm) units.

To build the picnic table you will need:
19 pieces of 2x6 (50 x 150mm) lumber @ 8ft (2.4m) long.
122 exterior wood screws @ 3" (75mm) long.
64 exterior wood screws @ 4" (100mm) long.
12 only 1/2" (12mm) galvanized carriage/coach bolts 4-1/2" (120mm) long with washers and nuts.

View full details

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sammy Waller

Perfect, my son and had it together in one day.

s
sara

My husband and I are not builders, and this made the process of building a table so easy! I loved the shopping list, very convenient.

We only had a few issues...
There are two sizes of needed screws listed, but rarely are sizes mentioned in the actual build. We could've got by with a box of one size I think.
At the "put the boards on top" stage, it tells you to put both outside boards on the edges, then fill in the middle. Luckily we measured first, because our boards are slightly bigger than listed. At the end of the pack it does mention board variations, but of course I hadn't read that far yet!

Overall great product, easy to follow!

S
Sign in with Apple user

Thank you, product was great.

D
D

Well built 8' table - good instructions

J
Jewel

A great value for the detailed and easy to follow picnic table plan. It was delivered online in a PDF which worked perfectly.
