Les Kenny's outdoor woodworking plans

DIY plans to build an 8ft (2400mm) long outdoor dining table

DIY plans to build an 8ft (2400mm) long outdoor dining table

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out

Digital download.    File type: PDF
Your files will be available to download once payment is confirmed

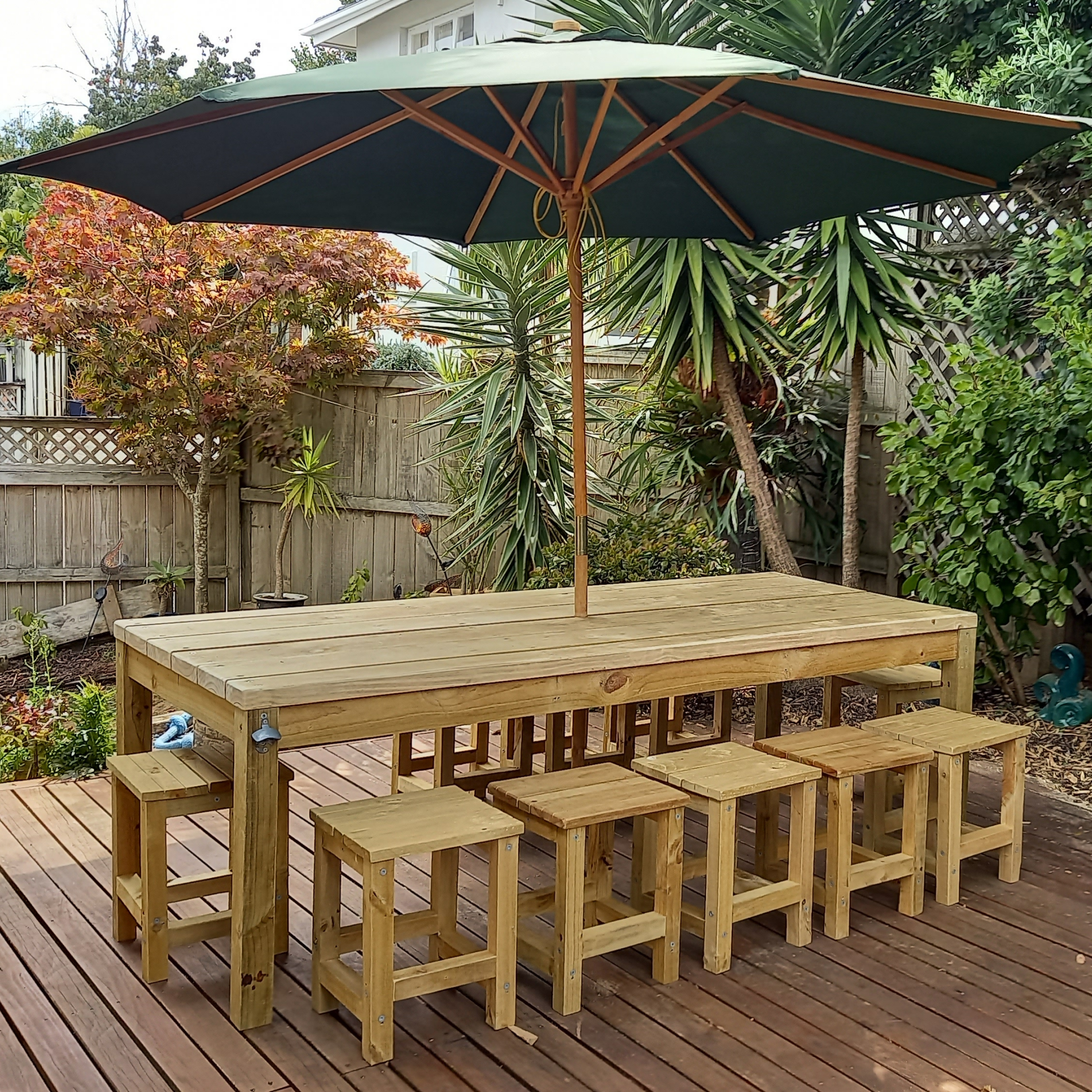

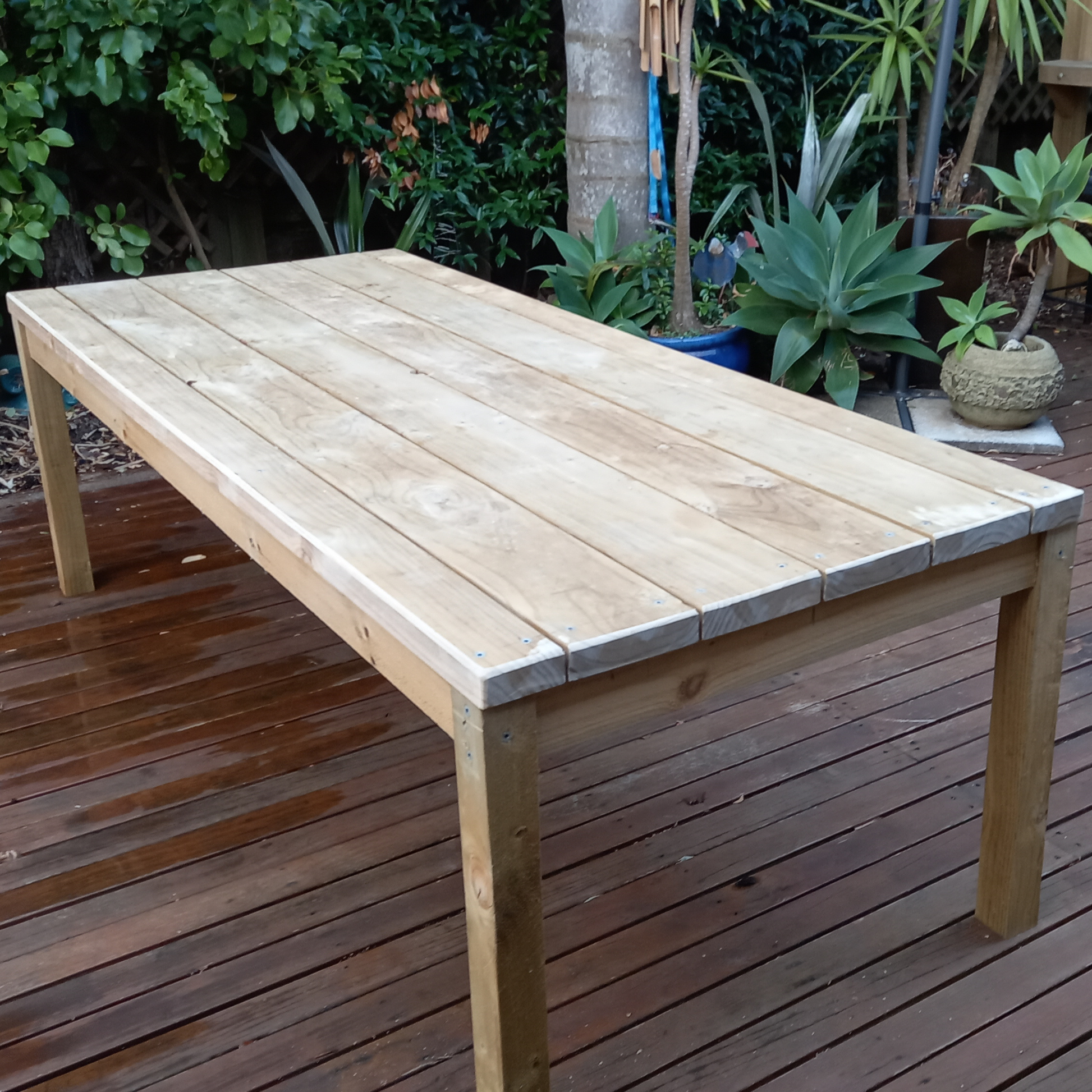

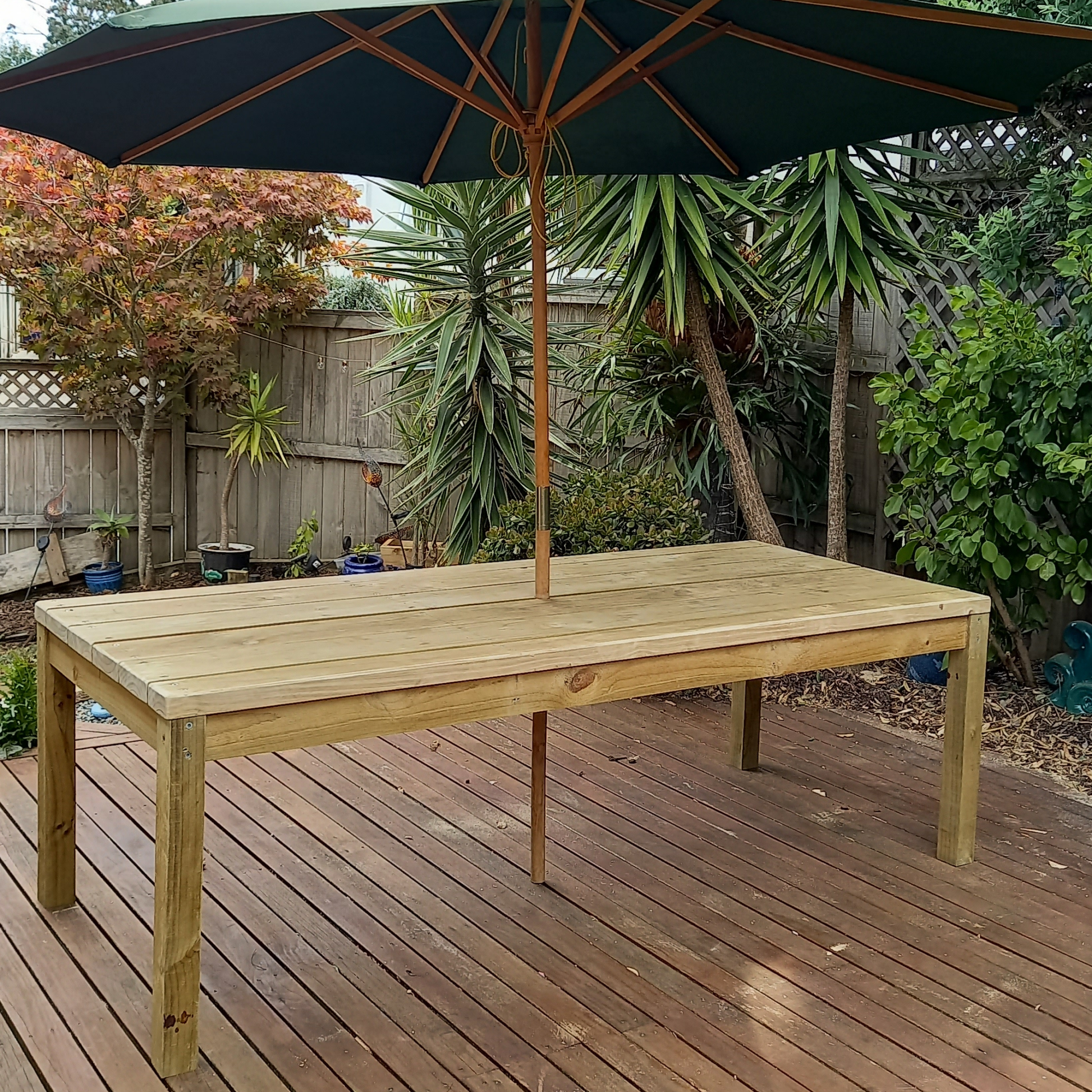

Downloadable DIY plans with step-by-step instructions on how to construct a strong outdoor farmhouse style table capable of seating 12 people.

Note: The plans do not include any seats. Only the table.

At 8ft (2439mm) long and 39-1/2" (1003mm) wide, it is inexpensive to make and is a simple construction.

The downloadable PDF file contains 17 pages that include plans, pictures, drawings, a shopping list, a cutting list, and easy to follow step-by-step building instructions.

All measurements in this project are given in both inches (standard) and metric (mm) units.

The materials you will need

In this case, I went treated pine:
4x4 (100 x100mm) sawn lumber for the legs - which I ripped down to 3x3 (75 x75mm),
2x4 (50 x 100mm) sawn lumber for the frame,
and I found a good deal on 2nd grade dressed 1-1/2" x 7-1/2" (38mm x 190mm) boards for the tabletop.


Use an exterior type structural wood screw such as HeadLOK screws, or galvanized bugle head batten screws, or whatever similar type of exterior structural wood screw you are able to source.
Screws you will need...

24 only @ 6" (150mm) long for the frame
48 only @ 5" (125mm) long for the tabletop boards
16 only @ 4" (100mm) long for the corner braces

A great project to make.
