DIY plans to build a companion seat with a center table
DIY plans to build a companion seat with a center table
Couldn't load pickup availability
Delivery
Digital download. File type: PDF
Your files will be available to download once payment is confirmed.
Description

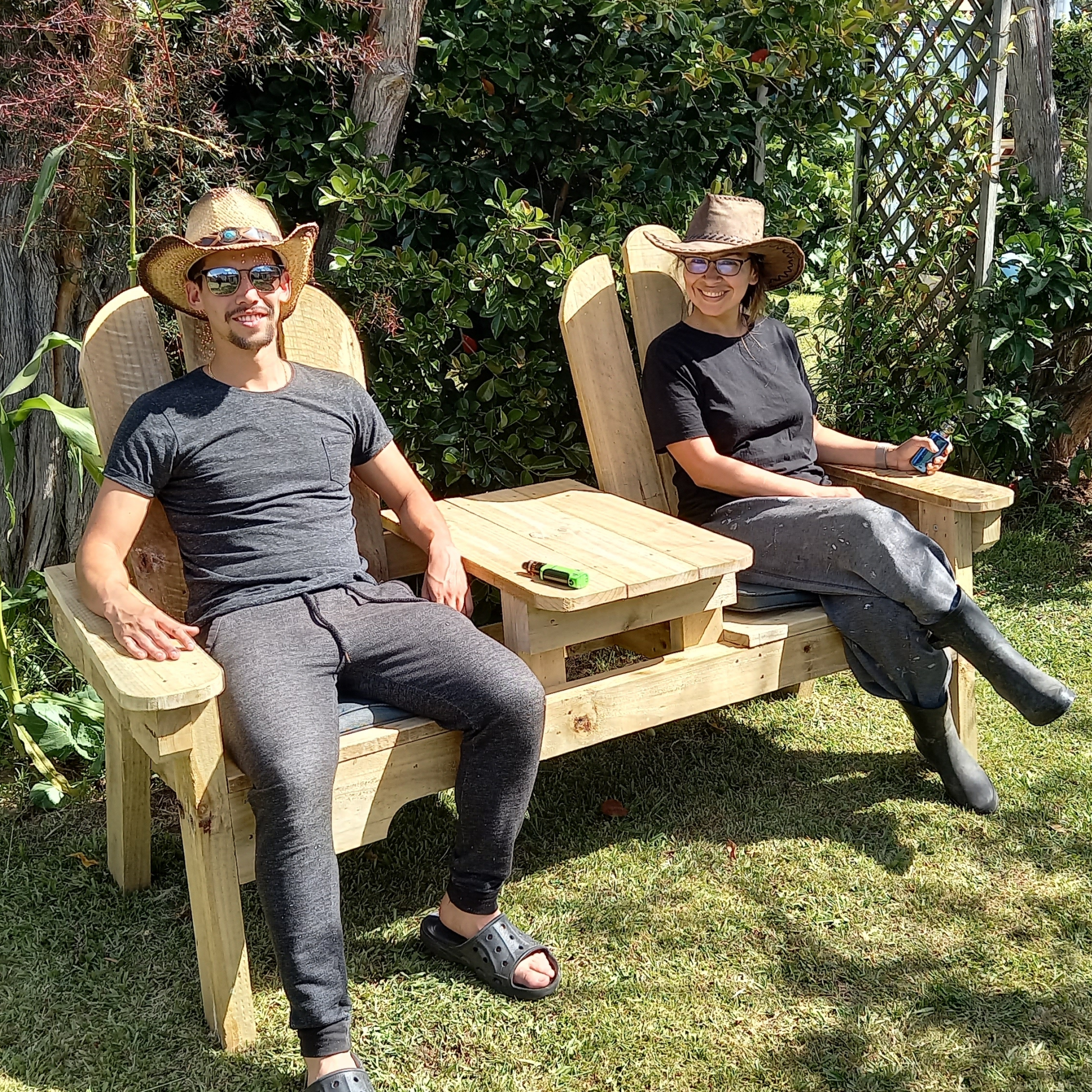

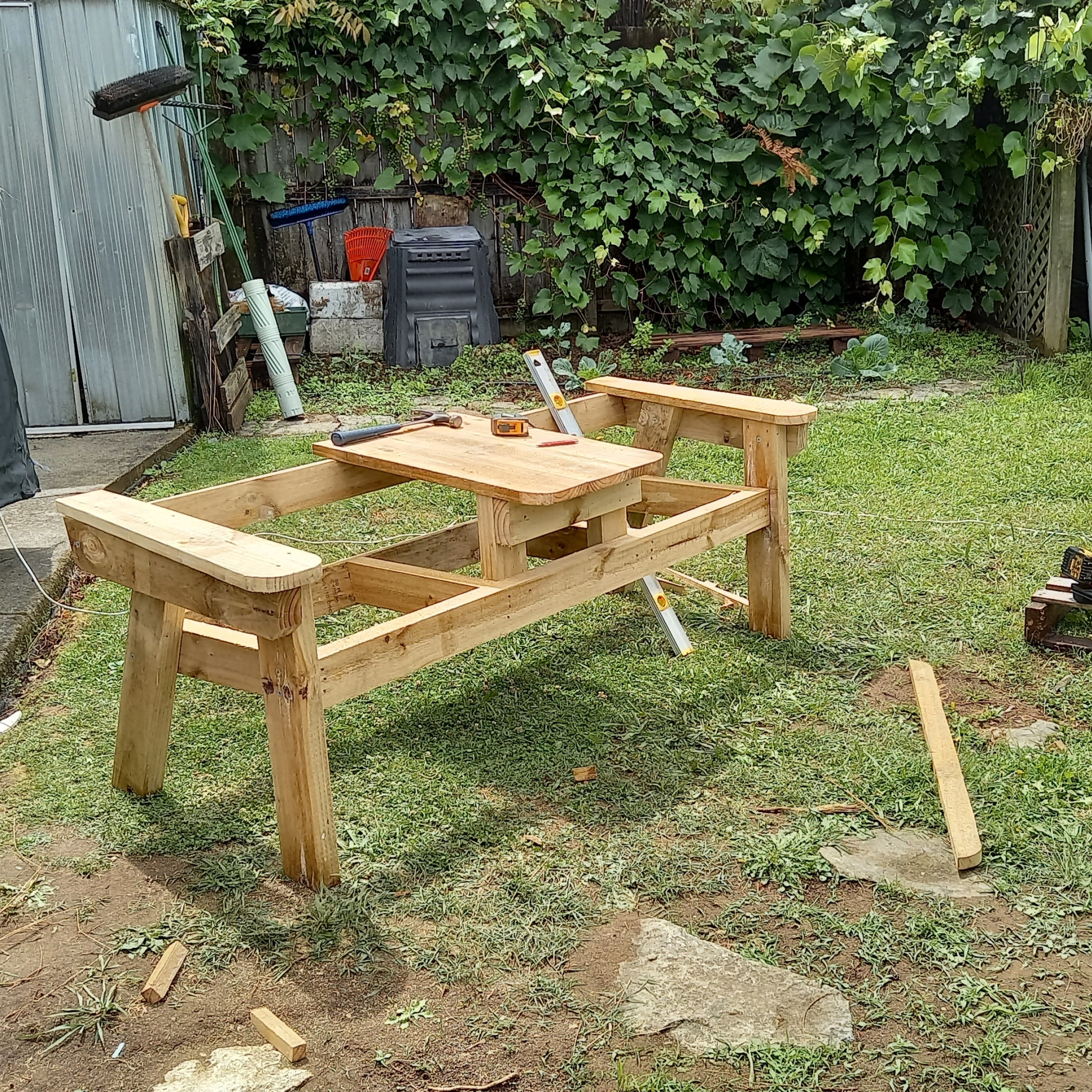

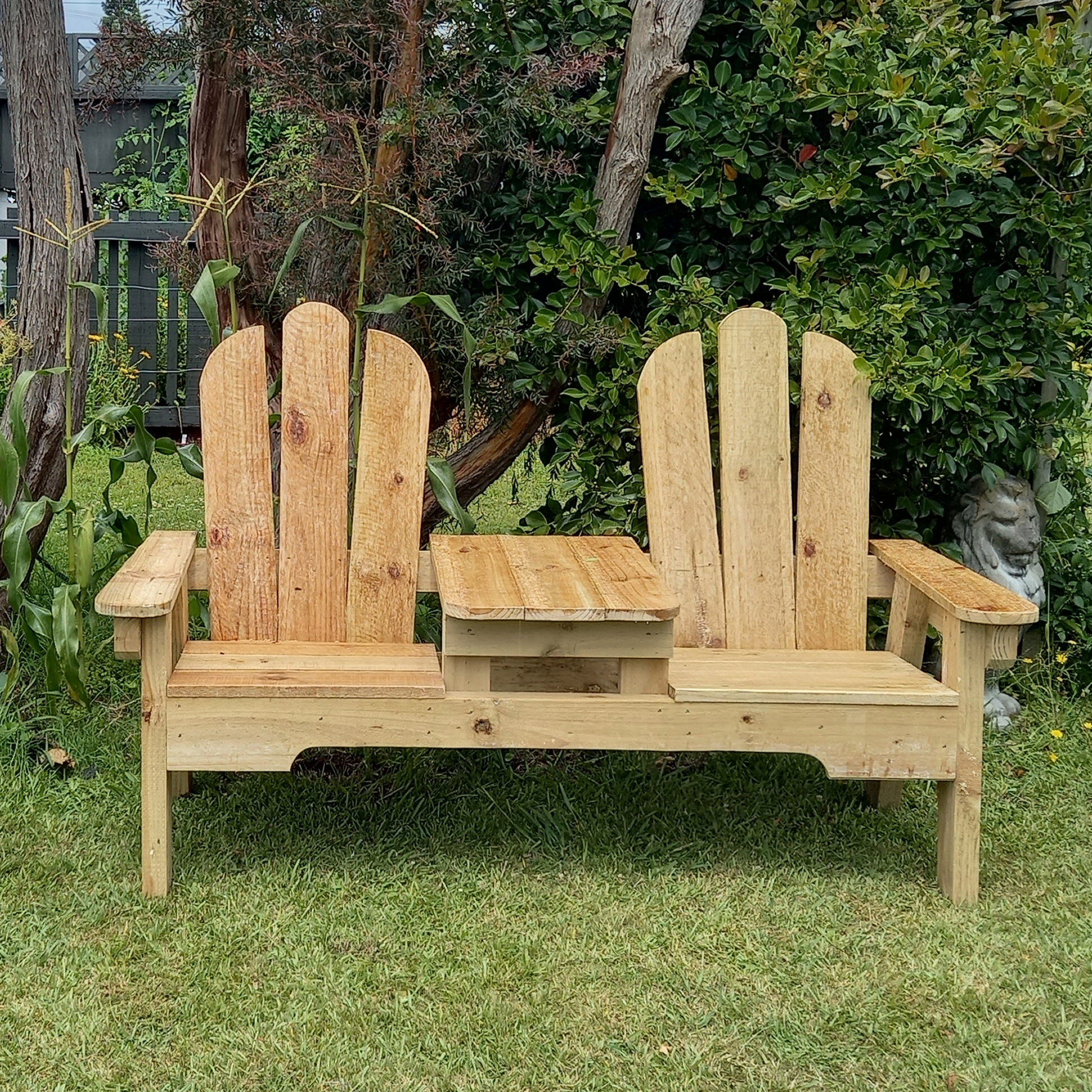

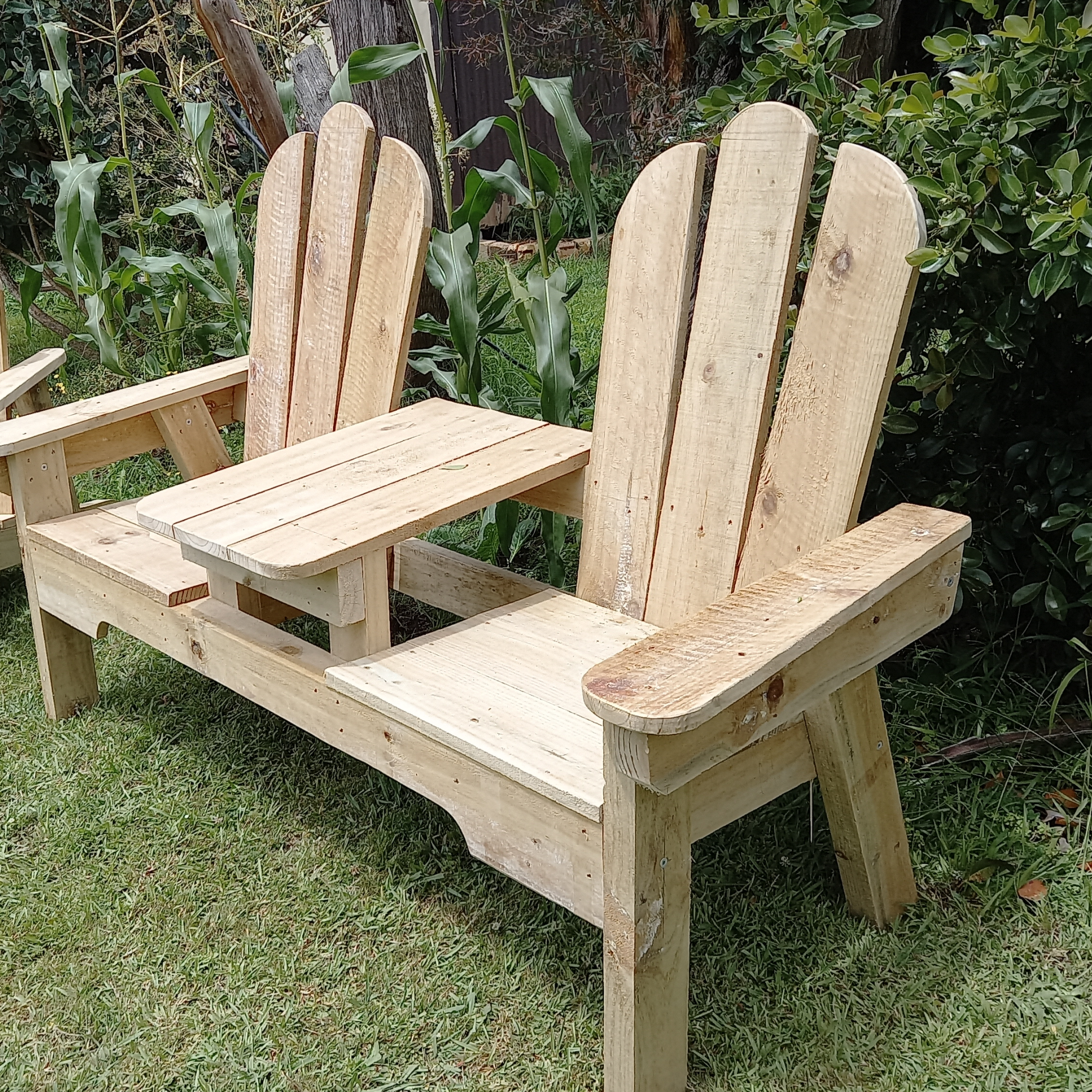

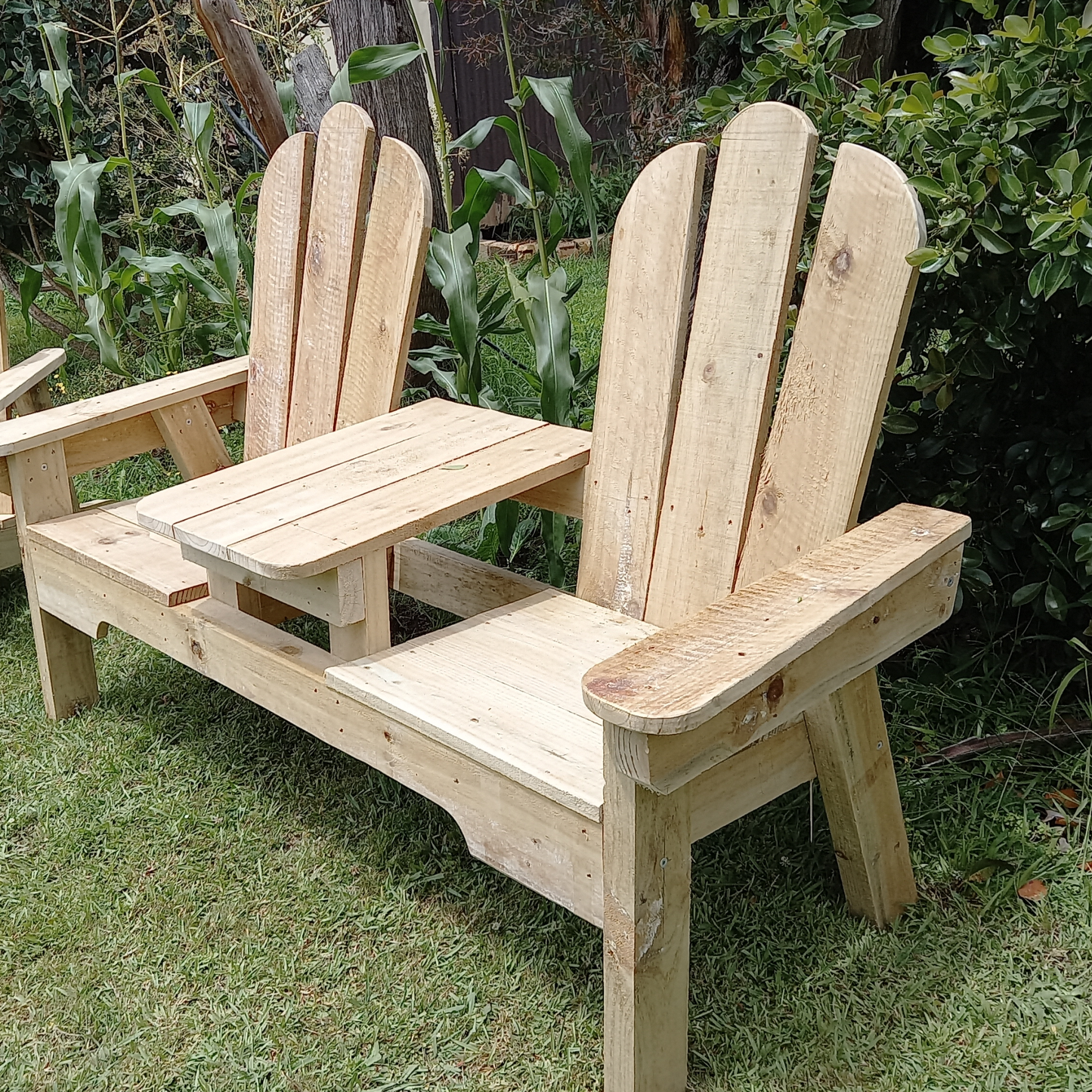

DIY Plans for a two seater Jack and Jill seat that is easy to build, inexpensive, solid, looks good, and is very very comfortable.
It is made solely out of 2x4 (50 x 100mm) and 1x6 (25 x 150mm) rough lumber.
The downloadable PDF file contains 19 pages which include plans, pictures, drawings, a materials list, a cutting plan, and easy step-by-step building instructions.
The overall length of the structure is 74" (1880mm)
All dimensions throughout this project are given in both inches (standard) and metric (mm) units.
Materials you will need for this project:
LUMBER
You can cut all of the pieces out of the following:
5 only lengths of 2x4 (50 x 100mm) lumber @ 8ft (2400mm) long.
9 only lengths of 1x6 (25 x 150mm) lumber @ 6ft (1800mm) long.
FIXINGS
60 of 3-1/2" (90mm) galvanized flathead nails (or screws in place of)
100 of 3" (75mm) galvanized flathead nails (or screws in place of)
4 of 3/8" (10mm) x 3/1/2" (110mm) long galvanized bolts with nuts and
washers
6 of 6" (150mm) long construction type or similar heavy type screws.
Share
Step by step, can't wait to start
Good - detailed plan. Includes lumber list, cutting, building etc.
Havent built yet but will soon

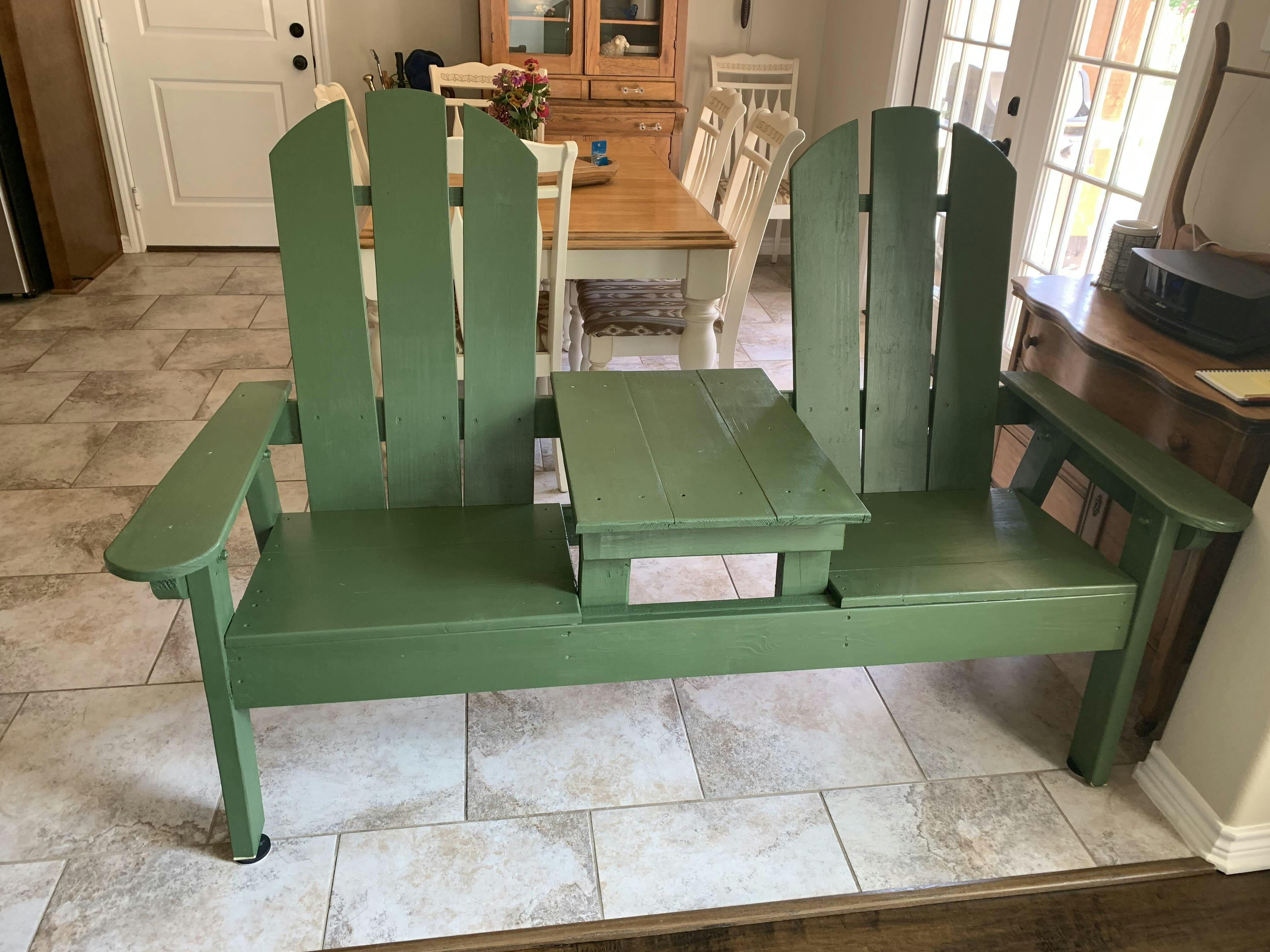

Very easy plans to follow. I was able to knock this out in an afternoon. The dimensions were slightly off, but that was likely user error, but the finished product looks like the picture…so it’s a win.
They were very thorough and precise! Love these plans
